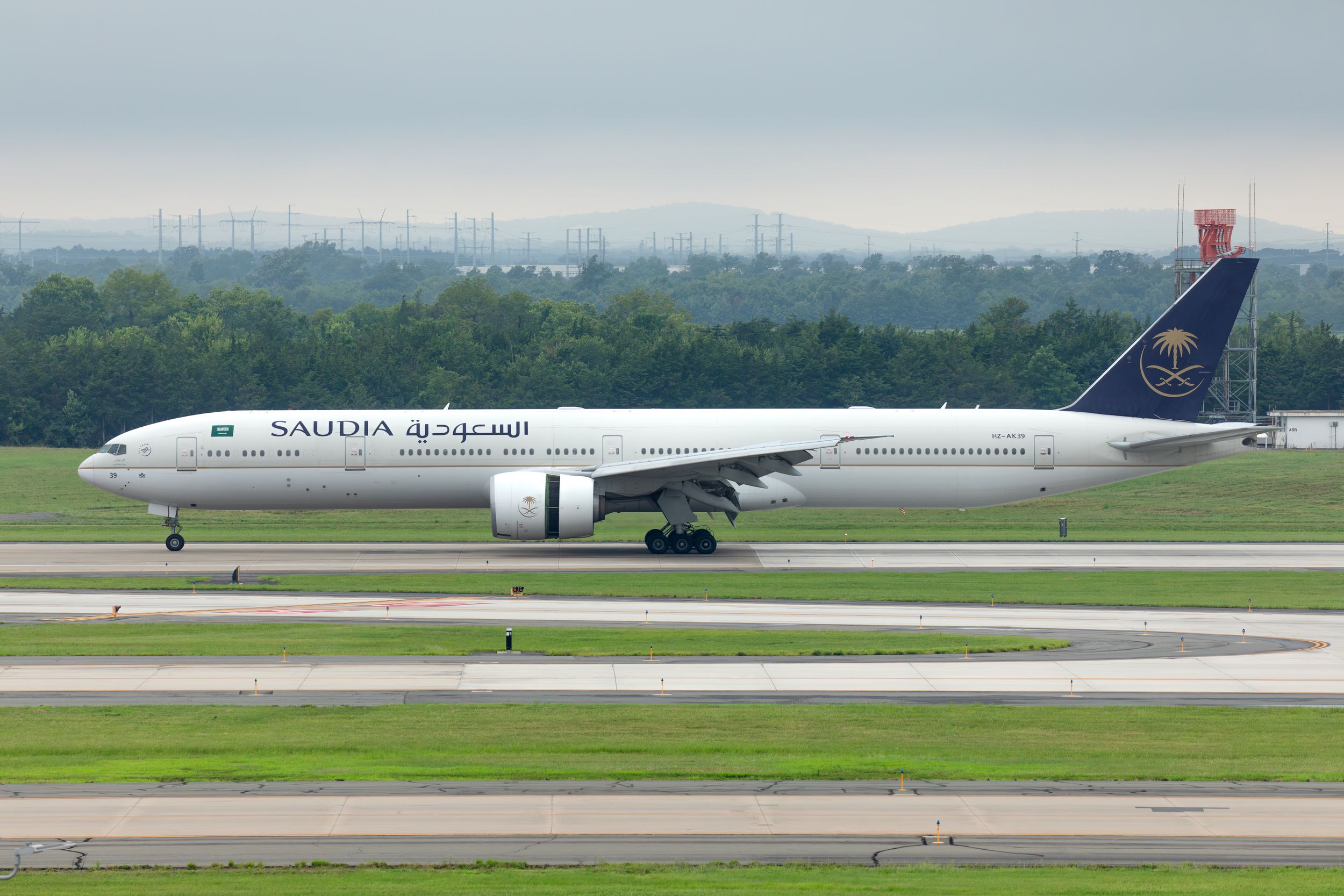

Boeing 777-300ER
The Boeing 777-300ER is a long-range, widebody twin-engine airliner and the most numerous member of the first-generation Boeing 777 family. It combines the fuselage length of the 777-300 with a higher-weight wing, raked wingtips, strengthened landing gear and General Electric GE90-115B engines. The variant entered airline service with Air France in May 2004 and became a principal long-haul type for airlines in the Middle East, Asia, Europe and North America.[1][2]
Development
The original 777-300 stretched the 777-200 but was designed principally for high-capacity regional routes. Boeing developed the 777-300ER as part of a longer-range group that also produced the 777-200LR and 777 Freighter. The “ER” aircraft retained the -300 fuselage while adding the fuel, thrust, take-off weight and aerodynamic changes needed for long sectors.[3][4]
The first 777-300ER flew on 24 February 2003. Its certification programme used two flight-test aircraft and demonstrated the new wingtip, engine and landing-gear configuration. The FAA approved the model on 16 March 2004; European validation followed before airline service. Air France introduced the GE90-115B-powered aircraft in May 2004.[5][6][1]
The type's combination of capacity and range allowed airlines to replace some four-engine aircraft and to open long, high-demand routes without moving to the larger Boeing 747 or Airbus A380. It also became a bridge between earlier 777s and the later 777X: Boeing presents the 777-9's capacity and efficiency in comparison with the 777-300ER, reflecting the older model's role as the previous large 777 benchmark.[7]
Design
Airframe and wing
The 777-300ER is 73.9 metres long, the same basic length as the 777-300, but its wing spans 64.8 metres. Two-metre raked extensions at each tip increase effective span and aerodynamic efficiency, improve climb performance and reduce the take-off field length and fuel burn compared with an otherwise similar tip arrangement.[2][4]
The higher maximum take-off weight required structural reinforcement. The main landing gear uses six wheels on each truck and incorporates a semi-levered arrangement that changes the effective rotation geometry during take-off. The tail-skid system protects the long aft fuselage during unusually high pitch attitudes. Exact structural and software standards vary with line number and incorporated service changes.
The airframe uses the 777 family's circular-section fuselage, conventional aluminium primary structure and composite empennage components. The two-crew flight deck has fly-by-wire controls, electronic displays and an electronic checklist. Pilots operate it under the common B-777 type rating, subject to operator-approved differences training and recency requirements.[8]
Engines
The 777-300ER is powered exclusively by two General Electric GE90-115B-series turbofans. The engine was selected as the sole powerplant for Boeing's longer-range 777 models and was certified at 115,000 pounds-force (about 512 kilonewtons) of thrust. Its large fan and composite fan blades are defining features of the aircraft.[9][1]
The GE90-115B installation is not interchangeable with the lower-thrust GE90, Rolls-Royce Trent 800 or Pratt & Whitney PW4000 installations offered on earlier 777 models. Approved engine marks, thrust ratings and operating limitations are controlled by the aircraft and engine type-certification data rather than by the family marketing name.[6][10]
Cabin and cargo
Boeing publishes a representative two-class capacity range of 350 to 425 seats. Certified maximum seating can be higher, but each operator's usable capacity depends on exits, cabin monuments, crew stations and the approved layout. Premium-heavy long-haul cabins may have considerably fewer seats, while dense configurations may exceed 400.[2][6]
Lower-deck containers and bulk baggage are carried beneath the passenger cabin. The aircraft was designed as a passenger model; it has no production main-deck cargo door. Passenger-to-freighter conversion programmes therefore require major structural changes and create a separately approved converted configuration, not a new-build 777 Freighter.
Specifications
| Characteristic | 777-300ER |
| Flight crew | 2 |
| Typical two-class seating | 350–425 |
| Length | 73.9 m |
| Wingspan | 64.8 m |
| Height | 18.5 m |
| Maximum take-off weight | 351,530 kg |
| Published range | up to 7,500 nmi (13,890 km) |
| Engines | 2 × GE90-115B |
| FAA-certified maximum passenger seating | 550 |
The seating and range figures are Boeing planning values rather than guarantees for every flight. Cabin configuration, operating empty weight, payload, reserves, winds, runway limits and temperature determine an airline's practical range. The 550-seat figure is a certification ceiling documented by the New Zealand Civil Aviation Authority, not a typical service layout.[2][6]
Production and deliveries
Boeing rolled out the first 777-300ER in November 2002. Production aircraft were assembled at Everett, Washington, on the same programme line as other 777 models. The variant accumulated 832 deliveries, making it substantially more numerous than the original 777-300.[3][11][12]
Production counts should distinguish new-build 777-300ERs from later operator transfers and freighter conversions. A change of registration, lessor or airline does not constitute another Boeing delivery, and a converted 777-300ERSF remains one of the original passenger airframes in the production total.
Operators and operational use
Air France was the launch operator. Emirates subsequently built the largest 777-300ER fleet, using the type across its long-haul network. Other significant operators have included Air Canada, Air China, All Nippon Airways, Cathay Pacific, EVA Air, Japan Airlines, KLM, Korean Air, Qatar Airways, Saudia, Singapore Airlines, Swiss, Turkish Airlines and United Airlines.[1][11]
The list is illustrative rather than a current fleet census. Aircraft move between airlines and lessors, and some early examples have been stored, retired or selected for conversion. A registration-level status should therefore be sourced to a recent operator statement, civil register or current fleet database.
The variant is used on high-density intercontinental routes and, by some operators, shorter sectors requiring substantial capacity. Its large belly holds also provide significant cargo volume alongside passenger baggage. Airlines have configured it for roles ranging from dense leisure transport to premium-heavy flagship service.
Freighter conversion
Israel Aerospace Industries developed the 777-300ERSF passenger-to-freighter conversion, sometimes called the “Big Twin”. The conversion adds a main-deck cargo door, reinforced floor, cargo-handling system and other structural and systems changes. FAA flight-standardisation material treats the 777-300ERSF as a converted 777-300ER configuration and documents separate operational evaluation.[8]
Converted aircraft should be linked to their original airframe histories. Their manufacturer serial numbers and initial Boeing delivery records remain those of the donor passenger aircraft, while the conversion date, supplemental approval and post-conversion operator are later events.
